Item

技术指标Technical index

输出

Output

直流电压

DC Output Voltage

24V

36V

48V

额定电流

Rated Current

33A

22A

16A

额定功率

Rated Power

792W

792W

768W

纹波及噪音

Ripple & Noise

﹤150mv

﹤240mv

﹤240mv

电压精度

Voltage Tolerance

±1%

±1%

±1%

输出电压调节范围

Output Voltage Adj. Range

±10%

负载调整率

Load Regulation

±1%

±1%

±1%

线性调整率

Line Regulation

±1%

±1%

±1%

输入

Input

电压范围

Voltage Range

180VAC-264VAC  47Hz-63Hz/260VDC-380VDC

工作效率

Efficiency

＞82%

＞84%

＞86%

工作电流

AC Current

﹤5A 230VAC

启动.上升.保持时间

Setup, Rise Time

200ms,50ms,20ms,230VAC

保护Protection

过载保护

Overload

120%-145% 关闭输出cut off output

过压保护

Over Voltage

＞115%-140% 关闭输出cut off output

短路保护

Short Circuit

关闭输出Cut off output

过温保护

Over Temperature

RTH2＞50℃风机启动 ＞90℃关闭输出

RTH2＞50℃ Fan Start ＞90℃ cut off output

环境Environment

工作温度.湿度Working Temp, Humidity

-10℃~+50℃;20%~90RH

储存温度.湿度

Storage Temp, Humidity

-20℃~+85℃;10%~95RH

安规

Safety

工频耐压

Working Frequency Withstand Voltage

输入与输出间 1.5 KVAC、输入与外壳间 1.5KVAC  输出与外壳间0.5KVAC  1min

Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC  1min

绝缘电阻

Insulation Resistance

输入与输出间、输入与外壳间、输出与外壳间500VDC/100MΩ

Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ

其他 Others

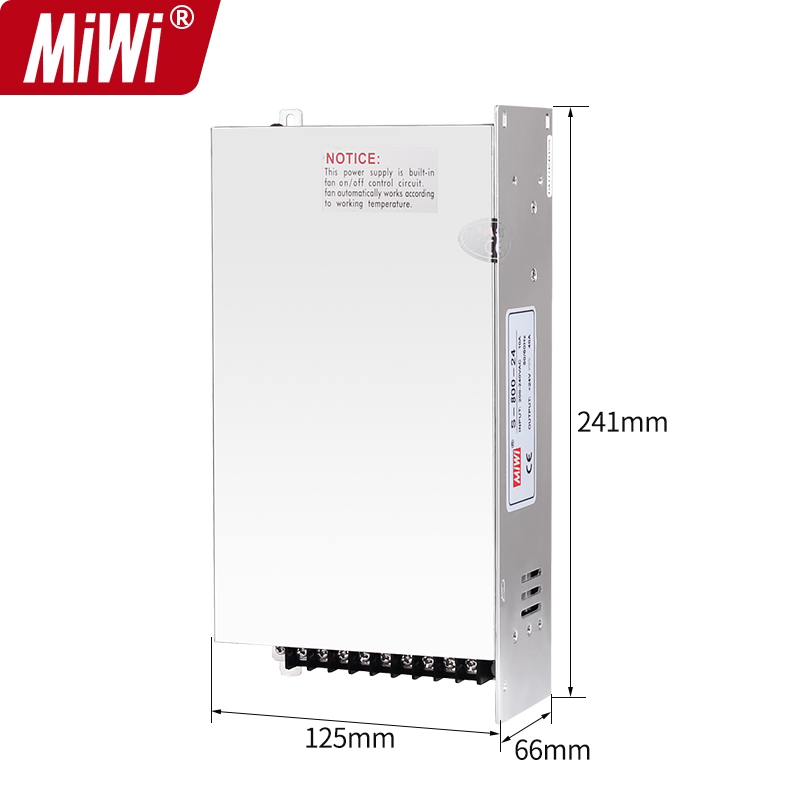

尺寸Dimension

241*125*66mm

净重量/毛重量

Net Weight/Gross Weight

1268/1334g
