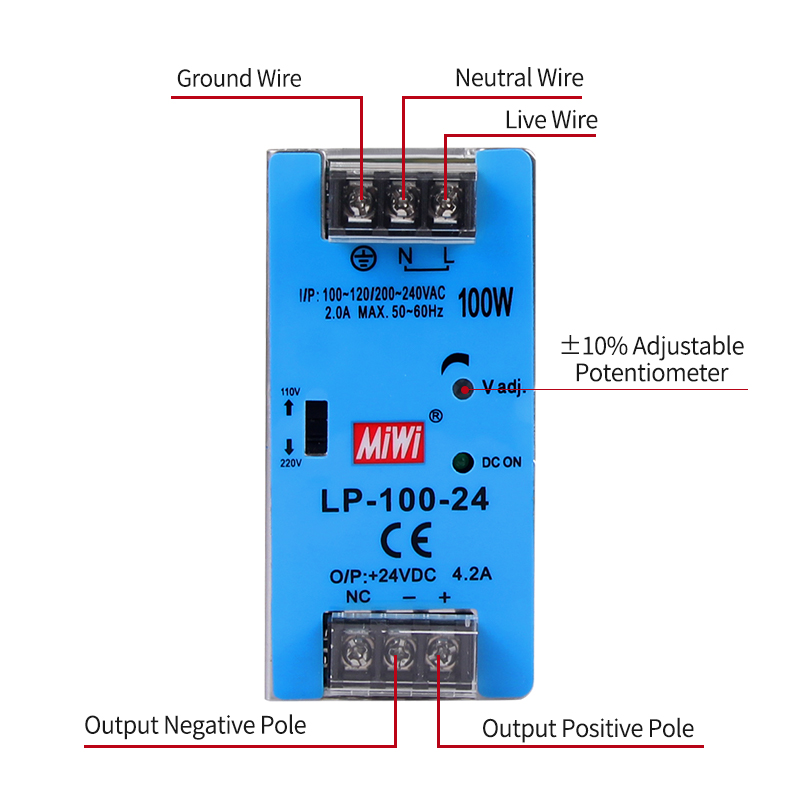

LP-100LP series is din rail type switching power supply with output voltage digtal display
公司：Qianxiang Electric Technology Co., Ltd
电话：+86-577-62627101
邮箱：maggie-liu@yqmingwei.com
地址：Wenzhou Yueqing, Zhejiang, China
分享：
立即咨询
Model                       /         SpecificationLP-100-12LP-100-24
OutputDC Output Voltage12V24V
Output Voltage tolerance± 1%± 1%
Rated Output Current8.3A4.2A
Output Current Range0-8.3A0-4.2A
DC Output Power99.6 W100.8 W
Tripple and Noise120mVp-p240mVp-p
Adjustable Range for DC Voltage11.4-13.2V 20.5-26.5V
InputAC Input Voltage Range85-132VAC/176-264VAC selected by swith or 248-373VDC 47~63Hz;
AC input current2A/115VAC  1A/230VAC
Efficiency83%85%
AC Inrush CurrentCold-Start Current: 10A/115V, 20A/230V
Leakage Current<2mA/240VAC
Protection charateristicOverload Protection110%-150%
Protection mode: cut off output and restart
Over Voltage Protection5.75-6.75V27-30V
Protection mode: cut off output and reset automatically
EnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RH
Storage Temperature Humidity`-20℃~+85℃, 10%~95%RH
Shock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
SafetyVoltage withstand capacityInput-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC
Insulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDC
Executive StantandSafety StandardsCE
EMC StandardsDesign refer to FCC part 15J Conduction Class B
OthersWeight 0.39KGS
Package30pcs/ctn 37*30*24.5
size 83*49*100(L*W*H)
Notes

  1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.

  2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

  3. The tolerance is the sum of setting voltage error , voltage and current regulation factor.
